Product Overview
AY-3020L Roof Heat Insulation Coating by Aoyalis is a high-performance roof coating that combines thermal insulation, UV reflection, and waterproofing in one product. This energy-saving solution uses nano-scale hollow microbeads to block solar heat and keep indoor environments cooler by up to 35°C during hot seasons.
Engineered for residential, industrial, and commercial roofing systems, it delivers long-term durability, weather resistance, and comfort without compromising the appearance of your building.
Key Features

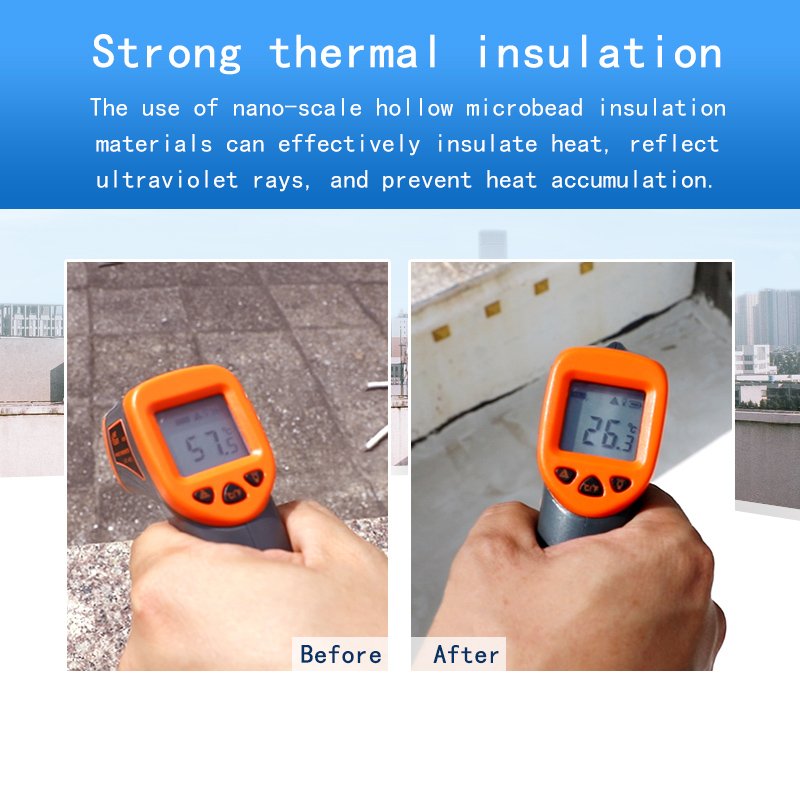

- Superior Heat Insulation: Nano hollow ceramic beads reflect infrared and UV rays, minimizing heat absorption.
- Reduce Indoor Temperature by up to 35°C: Especially effective in color steel tile and tin roof applications.
- Excellent Waterproofing: Tested in extreme conditions—resists ponding, rain, and humidity.
- High Flexibility: Prevents cracking or peeling due to expansion and contraction cycles.
- Eco-Friendly & Odorless: Low-VOC, water-based formula safe for workers and the environment.
- Easy to Apply: Can be brushed, rolled, or sprayed over various roof types.

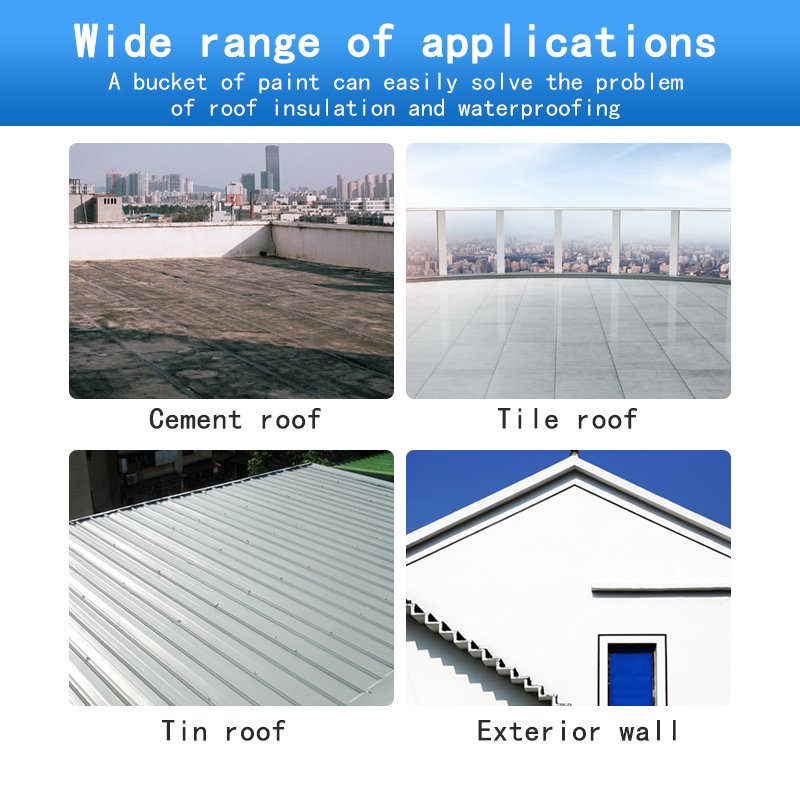

Application Areas
AY-3020L is suitable for use on a wide range of building materials and outdoor surfaces, including:
- Cement/concrete roofs
- Tile roofs
- Tin and galvanized steel roofs
- Color steel tile roofs
- Exterior building walls
- Factory buildings and warehouses
Technology & Performance
- Thermal Barrier Technology: Nano-scale ceramic hollow spheres reflect and scatter heat radiation.
- Hydrophobic Surface: Water beads on the surface, preventing water penetration and leakage.
- UV & Weather Resistance: Long-term exposure to sunlight, rain, and wind without degradation.
- Simulated Fish Tank Test: Demonstrated complete water tightness—proven real-world performance.
Technical Specifications
- Product Name: AY-3020L Roof Heat Insulation Coating
- Brand: Aoyalis
- Type: Water-based thermal insulation and waterproof coating
- Appearance: Matte finish, white or light color (customizable)

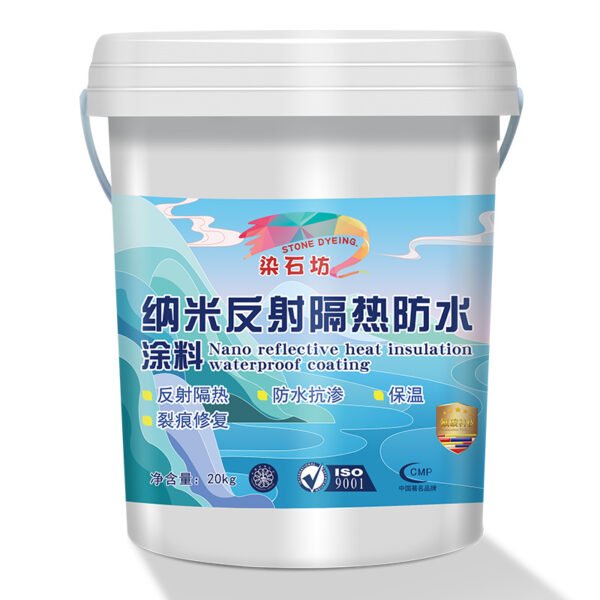

- Specification: 20L drum (other volumes available upon request)
- Coverage: 1–1.5 kg/m² depending on substrate
- Protection Time: 5–8 years
- Dry Time: Surface dry: 2–4 hours; full cure: 48 hours
- Application Method: Brush, roller, or spray gun
Why Choose Aoyalis?
Aoyalis is a trusted Chinese manufacturer of waterproofing, insulation, and stone care materials. Our 2,000㎡ factory is equipped with modern technology and a professional R&D team, ensuring each batch of AY-3020L meets the highest industry standards.
- Factory-direct pricing with stable quality
- OEM/ODM support for global partners
- Environmentally friendly solutions for sustainable construction
Product Summary Table
| Attribute | Details |
|---|---|
| Product Name | AY-3020L Roof Heat Insulation Coating |
| Brand | Aoyalis |
| Main Features | Thermal insulation, waterproofing, UV reflection |
| Appearance | Matte finish, white/light color |
| Base Material | Water-based nano ceramic emulsion |
| Packaging | 20KG (custom available) |
| Coverage | 1–1.5 kg/m² |
| Durability | 5–8 years |
| Application | Brush, roller, spray |
| Use On | Concrete, tin, tile, steel roofs, exterior walls |
| Temperature Reduction | Up to 35°C |
Take control of your building’s temperature – protect, cool, and waterproof with AY-3020L from Aoyalis. Inquire now for OEM or bulk orders.
Construction Instructions Download:
AY-3020L-Waterproof and thermal insulation coating product information
Products video:
https://drive.google.com/file/d/1cXFNdnMBTwwk-TRpKlufL-A–pDyzorn/view?usp=sharing
